After connecting to the RedVision® Pro Display to the User app with an active internet connection, the app will automatically check for available updates. If one is found, a yellow notification or download icon will appear. Tap ‘Install’ and stay within Bluetooth® range while the update runs, keeping the device connected to the internet. The process can take up to five minutes, depending on how many devices are being updated. If the update freezes or fails, users should power cycle the system, restart the app, and follow the prompts for firmware recovery or retry the installation.
- Open the REDARC RedVision® User App. Ensure your RedVision Pro Display is connected to the RedVision User app. For more information on how to connect to the Display, read this article: Pairing the RedVision® App to the Display
-
Once connected, the app will scan for any updates available, taking approximately 10-12 seconds. For the app to check if a firmware update is available, an internet connection is required.

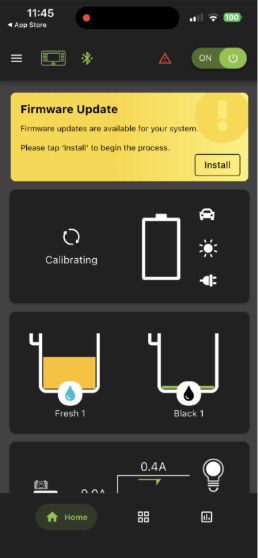

If an update is available, you will be notified at the top of your screen via yellow notification.
If you are using the Premium Tablet 10” display it will appear in the right-hand corner as a yellow download icon. The icon will only appear if a firmware update is available.
-
Press ‘Install’ to begin the firmware update.
Ensure you remain close to the battery to ensure you are within the Bluetooth® range whilst this update is in progress.
It is highly recommended to be connected to the internet throughout the firmware update process.
-

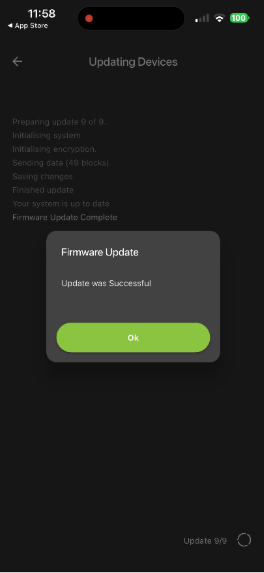

When the firmware update is completed, you will be notified within the app, ‘Update was Successful’.
It can take up to 5 minutes for the firmware update to complete, however for systems with multiple devices, the total update time will depend on the number of devices being updated.
Troubleshooting:
If the firmware update appears stuck or shows no progress, the user should wait for 5–10 seconds, then power cycle the system and restart the app.
If the firmware becomes corrupted due to an interruption; the user should power cycle the system and restart the app. The app will automatically reconnect, and within 5–6 seconds, it will navigate to the “Firmware Recovery” page to restore the system. Once recovery is complete, the user can retry the firmware update.
If the firmware update fails, a failure dialog will appear. In this case, the user should power cycle the system, restart the app, and attempt the update again.
