The Manager30 has a solar input rating of 520W for maximum output but can accept unlimited solar as long as the input voltage stays below 32V.
Adding extra or portable solar panels is supported without needing system reprogramming, provided all panels meet voltage requirements and share a common ground through the battery sensor assembly.
REDARC recommends seeking the support of a qualified auto electrician or technician.
Important
For your safety, REDARC recommends installation by a qualified auto electrician or technician. Our trusted REDNetwork is made up of professional auto electrical businesses certified by REDARC to install the complete of REDARC solutions. Find Your Local Installer
This information is applicable to the following products:
- The Manager30 (BMS1230)
- The Manager30 S2 (BMS1230S2)
- The Manager30 S3 (BMS1230S3, BMS1230S3-xx)
- The Manager30 with RedVision Pro Display (BMS1230S3R, BMS1230S3R-xx)
How much solar can the Manager30 handle?
The solar input rating is 520 watts, which is required for the Manager30 to operate at maximum output. However, the Manager30 has no limit on how much solar can be connected to it, as long as the solar input voltage is less than 32V. With more than 520 watts of solar input, the battery management system can provide peak power for longer periods throughout the day, enhancing overall performance.
Can I add any solar panel to my system?

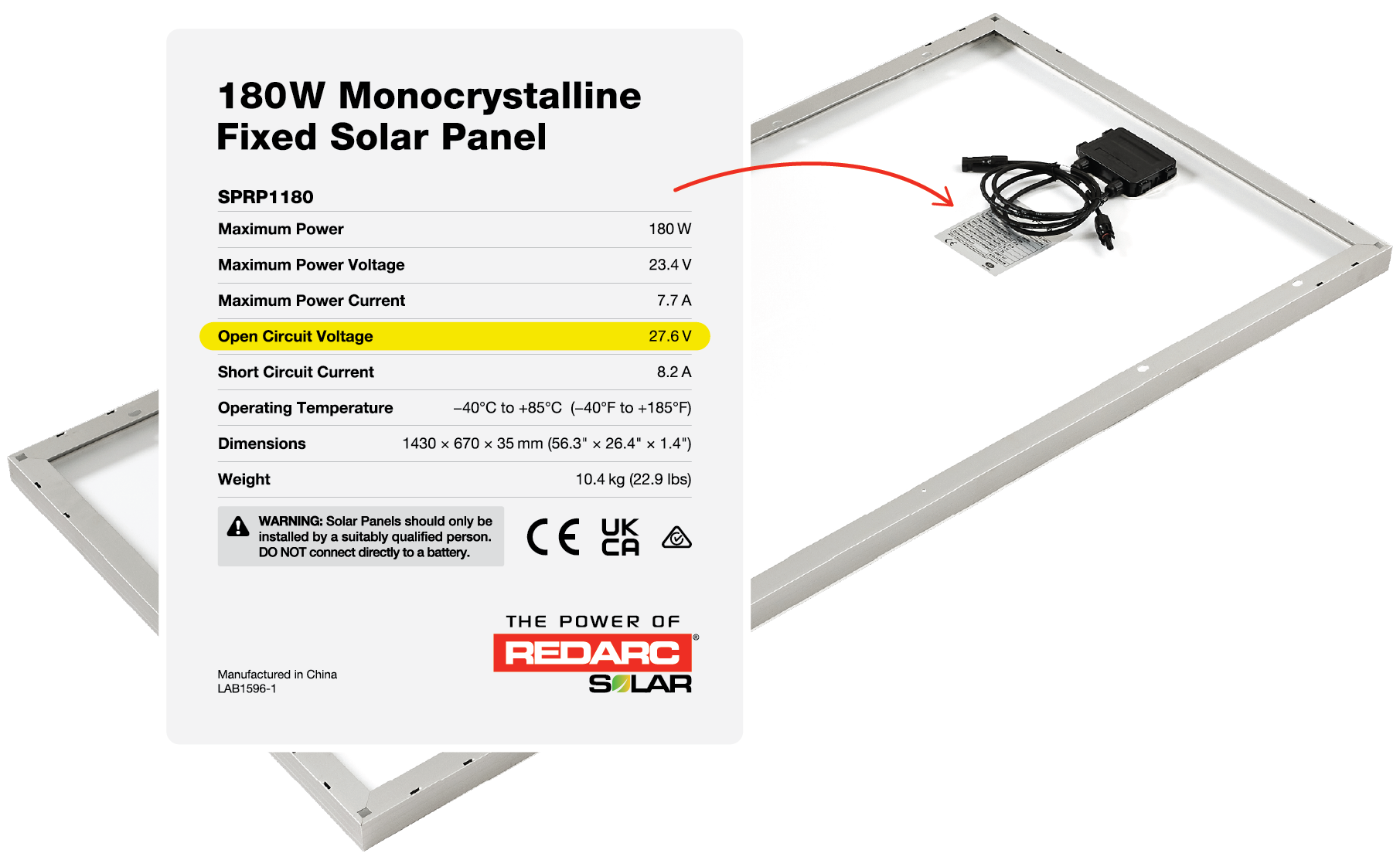

When adding extra solar panels to your system, it’s important to ensure that the solar panel specifications meet the requirements of the Manager30 system. The Manager30 can only accept a maximum solar input voltage of 32V. While the solar input rating is 520 watts for maximum output, additional panels can be connected as long as they comply with this voltage limit.
Can I add portable solar to a system with an existing fixed solar system?
Yes, when adding a portable panel into a system we add an Anderson plug into the system as pictured below.
Note: All ground (earth) circuits including the solar array need to be wired to the common ground (GND) side of the battery sensor assembly.
Do I need to change any programming in the Manager30 when adding extra solar?
No, there are no setting changes required in the Manager30 when adding extra solar panels.
What size cable do you recommend for 12V solar panels?
General cable size recommendations for 12V solar panels:
- Short Distances (less than 20 feet or 6 meters): Use 12-gauge (AWG) copper wire, which is suitable for most small-scale residential setups.
- Moderate Distances (20 to 50 feet or 6 to 15 meters): Opt for 10-gauge (AWG) copper wire. The thicker wire reduces voltage drop over longer distances.
- Long Distances (more than 50 feet or 15 meters): For larger installations or longer distances, use 8-gauge (AWG) copper wire to minimize voltage drop.
Note: Cable size requirements are based on the total load current in the circuit. Be sure to check your application to ensure that both the fuse and cable size are adequate for your specific setup.
