Important
For your safety, REDARC recommends installation by a qualified auto electrician or technician. Our trusted REDNetwork is made up of professional auto electrical businesses certified by REDARC to install the complete of REDARC solutions. Find Your Local Installer
This information is applicable to the following products:
- 100Ah REDLAB Icon Lithium Battery (LBATN12100)
- 200Ah REDLAB Icon Lithium Battery (LBATN12200)
- 300Ah REDLAB Icon Lithium Battery (LBATN12300)
The REDLAB Icon batteries only support configuration in series, parallel, and series-parallel configurations as specified in the below table.
Nominal Battery Bank Voltage |
Number of batteries in series |
Maximum number of batteries in parallel |
| 12V | 1 | 4 |
| 24V | 2 | 4 |
Wiring in series
- A maximum of two (2) Batteries can be connected in series.
- All batteries used in series must be identical.

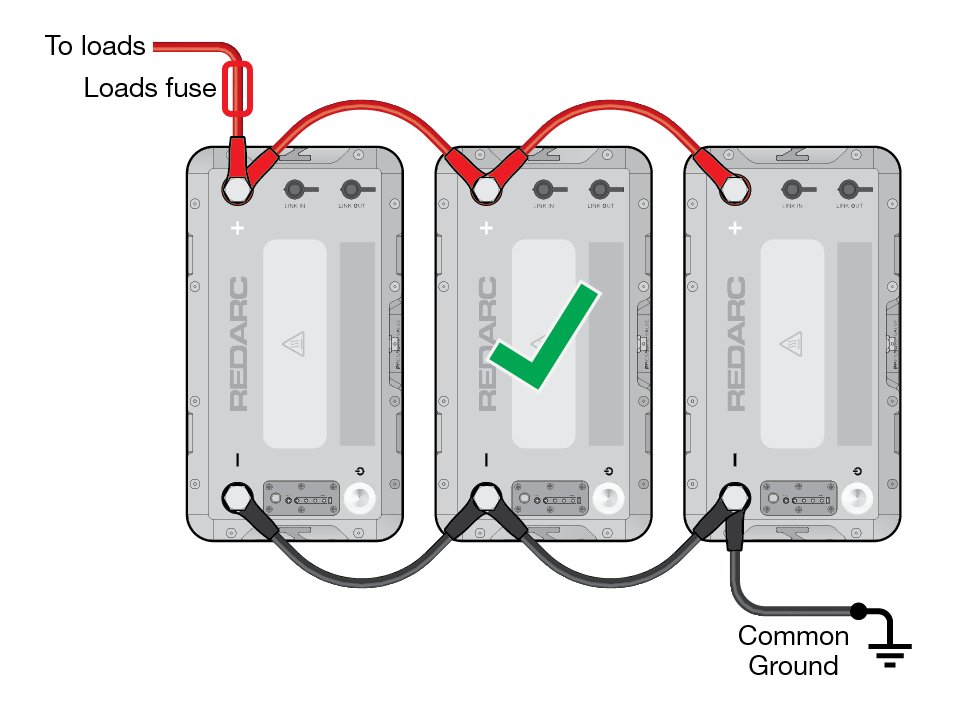

Wiring in parallel
- A maximum of four (4) batteries can be connected in parallel.
- All batteries used in parallel must be identical.

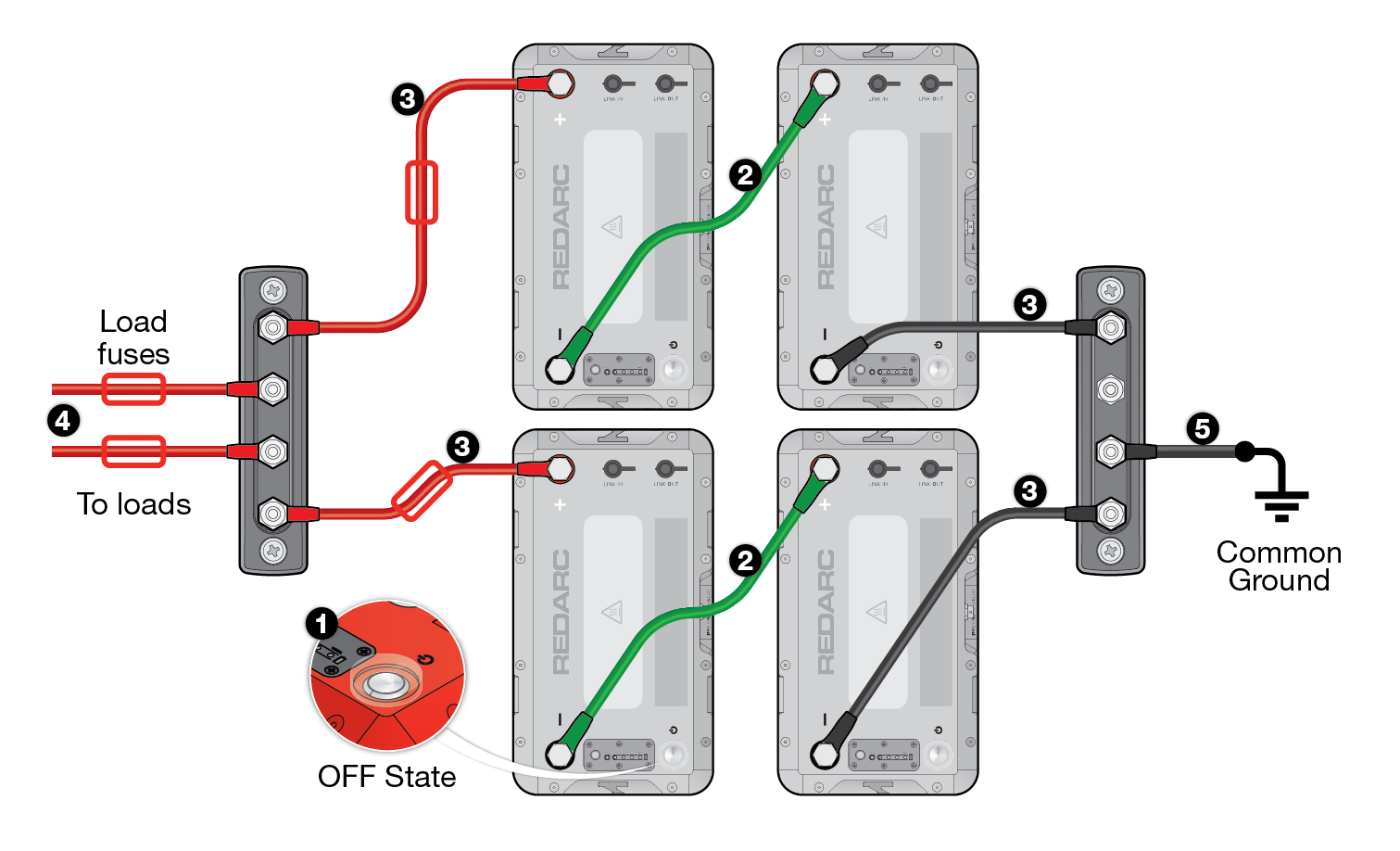

Wiring in series/parallel
- A maximum of eight (8) batteries. (2x batteries in series with a total of 4 battery banks)
All batteries used in series/parallel must be identical.
