The REDworks Scout, Nomad and Pioneer panels all require an auxiliary battery connection to enable Bluetooth®.
Scout and Nomad units use the Smart Battery Monitor for pairing, with the control button and status LED guiding you through connection to either the RedVision User App or the Configurator App. Pairing involves entering Bluetooth® mode, selecting the matching serial number in the app and waiting for the status LED to turn solid blue.
The Pioneer50 can pair through either the Smart Battery Monitor or directly through the REDvision screen, which displays a six digit code for authentication. Once paired, users can view system data through the User App or configure their setup through the Configurator App after confirming the correct serial number and completing the required prompts.
Important
For your safety, REDARC recommends installation by a qualified auto electrician or technician. Our trusted REDNetwork is made up of professional auto electrical businesses certified by REDARC to install the complete of REDARC solutions. Find Your Local Installer
This information is applicable to the following products:
- REDWorks Scout25 (ICMS-015-001)
- REDWorks Scout40 (ICMS-015-002)
- REDWorks Scout50 (ICMS-015-003)
- REDWorks Nomad40 (ICMS-016-002)
- REDWorks Nomad50 (ICMS-016-002)
- REDWorks Pioneer50 (ICMS-017-001)
To connect to Bluetooth® the REDworks Panel will need to be connected to an Auxiliary Battery.
Scout25/40, Scout50, Nomad40 & Nomad50
The Scout and Nomad REDworks Panels utilise a Smart Battery Monitor for their Bluetooth® connection. Each panel has a cut out for easy access to the control button.
To connect to the REDVision User App
1. Download the RedVision® App and make sure Bluetooth® is enabled on your smartphone.
2. Press the Control Button on the Battery Monitor for 0.5 to 3 seconds then the Status LED will flash Blue and the Battery Monitor will enter into Bluetooth® pairing mode.

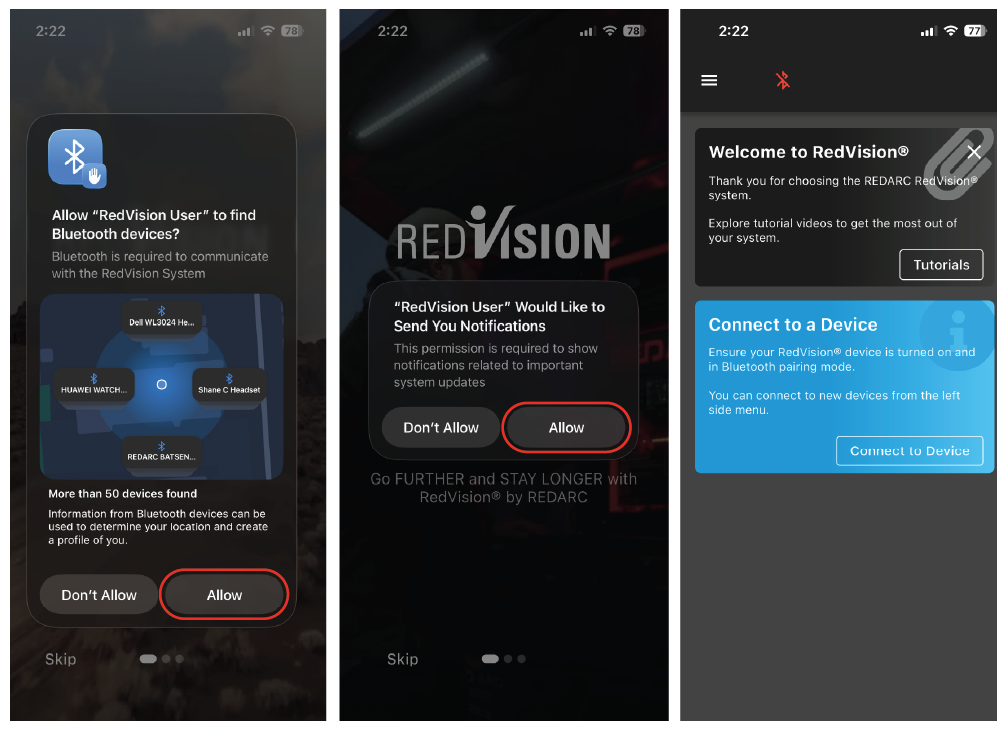

3. Open the RedVision® App and allow the required permissions if it's the first time using the App. Then, tap the Menu Icon (three lines). Under the devices heading, tap the Add Icon (+).
4. Find and select the device that matches the Product Serial Number on your Battery Monitor. Read and agree to the disclaimer.
5. When the Bluetooth® pairing request appears, tap Pair (first time pairing may take a few minutes).
6. Once the status LED turns solid Blue, and the system information appears on your smartphone the Bluetooth® pairing is complete (first time pairing may take a few minutes).
To Connect to the RedVision Configurator App
Ensure the REDvision User App is closed.
1. Download the RedVision® Configurator App and make sure Bluetooth® is enabled on your smartphone.
2. Press the Control Button on the Battery Monitor for 0.5 to 3 seconds, then the Status LED will flash Blue and the Battery monitor will enter into Bluetooth® pairing mode.
3. Open the Configurator App and allow the required permissions if it's the first time using the App. Then, in the Config System screen, press the Read Device button and select the system that matches the Product Serial Number on the Battery Monitor.
4. Under the Manager heading, tap the green arrow next to your Battery Monitor (check the system matches the Product Serial Number).
5. Configure the Battery Monitor by entering in your auxiliary battery's specifications* (refer to your battery manufactures specifications). Once completed, tap save (tick).
6. If the Status LED on the Battery Monitor is Off, press the Control Button for 0.5 to 3 seconds to enter back into Bluetooth® pairing mode, then, in the Configurator App press Program.
7. In the Config System screen, re-select the system that matches the Product Serial Number on the Battery Monitor. Do not exit the Configurator App until the success banner appears and the Status LED on the Battery Monitor turns solid Blue. Once this occurs the Bluetooth® pairing is complete.
*NOTE: System setups without an R-Bus Interface are not able to configure the Maximum Charge setting.
Pioneer50
The Bluetooth® connection on the Pioneer panel, can be made on either the REDvision Screen or the Smart Battery Monitor.
To connect to the Smart Battery Monitor see above.
To connect to the RedVision screen
1. Download the REDvision® App and make sure Bluetooth® is enabled on your smartphone.
2. On the REDvision screen find the Display settings and select the Bluetooth® Icon on the left hand bottom soft Key. Ensure Bluetooth® Pairing is Advertising or Ready. If it not, select the Bin Icon in the top RH corner and follow the prompts.
3. Open the RedVision® App and allow the required permissions if it's the first time using the App. Then, tap the Menu Icon under the devices heading, tap the Add Icon (+).
4. Find and select the device that matches the Product Serial Number on your RedVision Pro Display, read and agree to the disclaimer.
5. When the Bluetooth® pairing request appears, type in the 6 digit code displayed on the RedVision Screen and tap Pair (first time pairing may take a few minutes).
6. Once the Pairing/Device read is complete the system information appear will on your smartphone, the Bluetooth® pairing is complete. First time pairing may take a few minutes.
To connect to the RedVision screen for configuration
1. Download the RedVision® Configurator App and make sure Bluetooth® is enabled on your smartphone. Ensure the RedVision® User App is closed.
2. On the RedVision screen find the Display settings and select the Bluetooth® Icon on the left hand bottom soft Key. Ensure Bluetooth® pairing is Advertising or Ready. If it not, select the Bin Icon in the top RH corner and follow the prompts.
3. Open the Configurator App and allow the required permissions if it's the first time using the App. Then, in the Config System screen, press the Read Device button and select the system that matches the Product Serial Number on the REDvision Screen.
4. Find and select the device that matches the Product Serial Number on your RedVision Pro Display, read and agree to the disclaimer.
5. When the Bluetooth® pairing request appears type in the 6 digit code displayed on the RedVision screen and tap Pair (first time pairing may take a few minutes).
6. Once the Pairing/Device read is complete the Factory Configuration will appear on your smartphone and the Bluetooth® pairing is complete. The first time pairing may take a few minutes. You will then be able to customise your configuration.
7. Once the Pairing/Device read is complete the Factory Configuration will appear on your smartphone and the Bluetooth® pairing is complete. The first time pairing may take a few minutes. You will then be able to customise your configuration.
For more Tip on how to Configurate your system see our RedVision Configurator Guide.
